How Flyway works

转载:How Flyway works

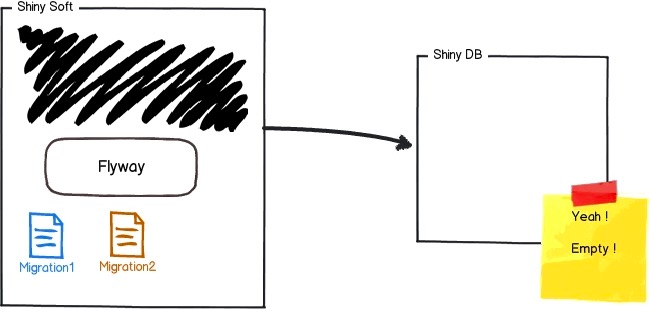

The easiest scenario is when you point Flyway to an empty database.

2021-04-16-yXbUaP

It will try to locate its schema history table. As the database is empty, Flyway won't find it and will create it instead.

You now have a database with a single empty table called flyway_schema_history by default:

2021-04-16-GRpvYo

This table will be used to track the state of the database.

Immediately afterwards Flyway will begin scanning the filesystem or the classpath of the application for migrations. They can be written in either Sql or Java.

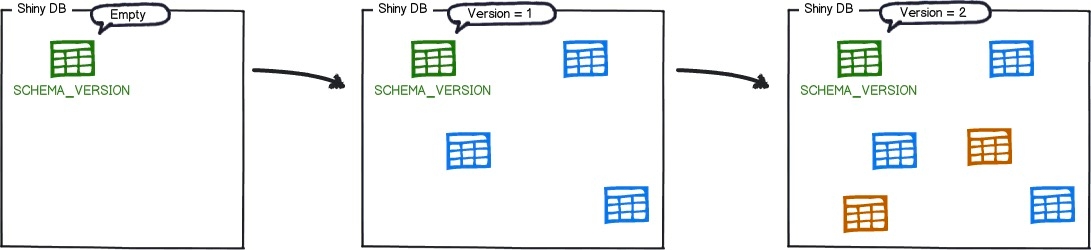

The migrations are then sorted based on their version number and applied in order:

2021-04-16-k0Nb9t

As each migration gets applied, the schema history table is updated accordingly:

flyway_schema_history

installed_rank
version
description
type
script
checksum
installed_by
installed_on
execution_time
success

1

1

Initial Setup

SQL

V1__Initial_Setup.sql

1996767037

axel

2016-02-04 22:23:00.0

546

true

2

2

First Changes

SQL

V2__First_Changes.sql

1279644856

axel

2016-02-06 09:18:00.0

127

true

With the metadata and the initial state in place, we can now talk about migrating to newer versions.

Flyway will once again scan the filesystem or the classpath of the application for migrations. The migrations are checked against the schema history table. If their version number is lower or equal to the one of the version marked as current, they are ignored.

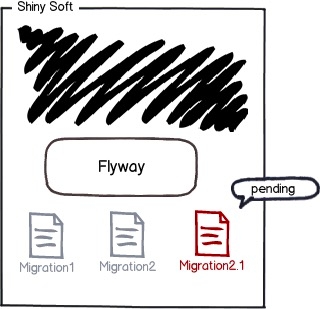

The remaining migrations are the pending migrations: available, but not applied.

2021-04-16-m6SvTL

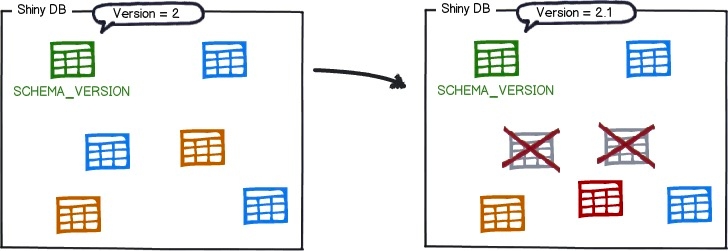

They are then sorted by version number and executed in order:

2021-04-16-WyhNWk

The schema history table is updated accordingly:

flyway_schema_history

installed_rank
version
description
type
script
checksum
installed_by
installed_on
execution_time
success

1

1

Initial Setup

SQL

V1__Initial_Setup.sql

1996767037

axel

2016-02-04 22:23:00.0

546

true

2

2

First Changes

SQL

V2__First_Changes.sql

1279644856

axel

2016-02-06 09:18:00.0

127

true

3

2.1

Refactoring

JDBC

V2_1__Refactoring

axel

2016-02-10 17:45:05.4

251

true

And that's it! Every time the need to evolve the database arises, whether structure (DDL) or reference data (DML), simply create a new migration with a version number higher than the current one. The next time Flyway starts, it will find it and upgrade the database accordingly.
