# Spring Boot自动化配置源码分析

> 转载：[SpringBoot自动化配置源码分析](https://objcoding.com/2018/01/30/The-principle-of-Spring-Boot-automation-configuration/)

SpringBoot 的自动化配置让我们的开发彻底远离了 Spring 繁琐的各种配置，让我们专注于开发，但是SpringBoot 的自动化配置是怎么实现的呢？下面为你揭开 SpringBoot 自动化配置的神秘面纱。

### 1. @EnableAutoConfiguration

SpringBoot 最为重要的一个注解就是 @SpringBootApplication，它其实是一个组合元注解：

```java
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
  excludeFilters = {@Filter(
    type = FilterType.CUSTOM,
    classes = {TypeExcludeFilter.class}
  ), @Filter(
    type = FilterType.CUSTOM,
    classes = {AutoConfigurationExcludeFilter.class}
  )}
)
public @interface SpringBootApplication {
  @AliasFor(
    annotation = EnableAutoConfiguration.class,
    attribute = "exclude"
  )
  // 此处省略部分代码
}
```

从这个注解可看出，它包含了 `@EnableAutoConfiguration` 这个注解，这个注解就是 SpringBoot 自动化配置原理的核心所在：

```java
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import({EnableAutoConfigurationImportSelector.class})
public @interface EnableAutoConfiguration {
  String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";

  Class<?>[] exclude() default {};

  String[] excludeName() default {};
}
```

我们发现它使用了 Spring 框架提供的 @Import 注解注入了注册 Bean 的配置类，在往下分析前，不妨先了解一下这个 @Import 注解，在我们平时使用 Spring 框架的 `Enable*` 类注解时，发现它们都有一个共同的特点，就是都有一个 @Import 注解，用来导入配置类，这些配置方式又分为三种类型：

1. 直接导入配置类：`@Import({xxxConfiguration.class})`
2. 依据条件选择配置类：`@Import({xxxSelector.class})`
3. 动态注册 Bean：`@Import({xxxRegistrar.class})`

很明显，@EnableAutoConfiguration 这个注解使用的是第三种情况，导入 `EnableAutoConfigurationImportSelector` 类，继续跟踪源码：

```java
public class EnableAutoConfigurationImportSelector extends AutoConfigurationImportSelector {
  public EnableAutoConfigurationImportSelector() {
  }

  protected boolean isEnabled(AnnotationMetadata metadata) {
    return this.getClass().equals(EnableAutoConfigurationImportSelector.class) ? ((Boolean)this.getEnvironment().getProperty("spring.boot.enableautoconfiguration", Boolean.class, true)).booleanValue() : true;
  }
}
```

查看父类源码：

```java
public String[] selectImports(AnnotationMetadata annotationMetadata) {
  if (!this.isEnabled(annotationMetadata)) {
    return NO_IMPORTS;
  } else {
    try {
      // 此处省略部分代码
      List<String> configurations = this.getCandidateConfigurations(annotationMetadata, attributes);
      // 此处省略部分代码
      return (String[])configurations.toArray(new String[configurations.size()]);
    } catch (IOException var6) {
      throw new IllegalStateException(var6);
    }
  }
}
```

```java
protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
  List<String> configurations = SpringFactoriesLoader.loadFactoryNames(this.getSpringFactoriesLoaderFactoryClass(), this.getBeanClassLoader());
  Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you are using a custom packaging, make sure that file is correct.");
  return configurations;
}
```

我们最终发现它其实是实现了 ImportSelector 接口：

```java
public interface ImportSelector {
	String[] selectImports(AnnotationMetadata var1);
}
```

**实现 ImportSelectors 接口的类通常与常规的 @Import 注解作用相同，它的 selectImports() 方法返回的数组（类的全类名）都会被纳入到 Spring 容器中。**

到这里，**自动化配置幕后英雄终于出现了，它就是 Spring 的 `SpringFactoriesLoader` 类，该类专门用于加载 classpath下所有 JAR 文件的 `META-INF/spring.factories` 文件**，不妨看看它的源码：

```java
public static <T> List<T> loadFactories(Class<T> factoryClass, ClassLoader classLoader) {
  Assert.notNull(factoryClass, "'factoryClass' must not be null");
  ClassLoader classLoaderToUse = classLoader;
  if (classLoader == null) {
    classLoaderToUse = SpringFactoriesLoader.class.getClassLoader();
  }

  List<String> factoryNames = loadFactoryNames(factoryClass, classLoaderToUse);
  if (logger.isTraceEnabled()) {
    logger.trace("Loaded [" + factoryClass.getName() + "] names: " + factoryNames);
  }

  List<T> result = new ArrayList(factoryNames.size());
  Iterator var5 = factoryNames.iterator();

  while(var5.hasNext()) {
    String factoryName = (String)var5.next();
    result.add(instantiateFactory(factoryName, factoryClass, classLoaderToUse));
  }

  AnnotationAwareOrderComparator.sort(result);
  return result;
}
```

继续看instantiateFactory方法：

```java
private static <T> T instantiateFactory(String instanceClassName, Class<T> factoryClass, ClassLoader classLoader) {
        try {
            Class<?> instanceClass = ClassUtils.forName(instanceClassName, classLoader);
            if (!factoryClass.isAssignableFrom(instanceClass)) {
                throw new IllegalArgumentException("Class [" + instanceClassName + "] is not assignable to [" + factoryClass.getName() + "]");
            } else {
                Constructor<?> constructor = instanceClass.getDeclaredConstructor();
                ReflectionUtils.makeAccessible(constructor);
                return constructor.newInstance();
            }
        } catch (Throwable var5) {
            throw new IllegalArgumentException("Unable to instantiate factory class: " + factoryClass.getName(), var5);
        }
    }
```

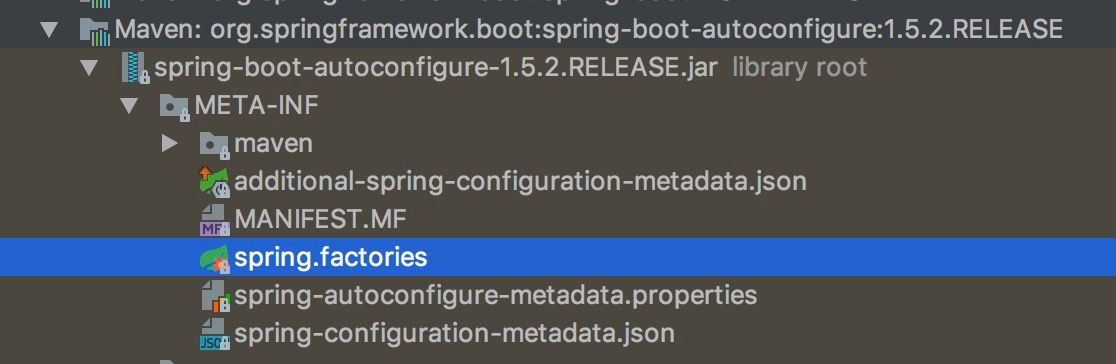

我们去看看 `spring.factories` 到底长什么样子：

![2020-09-02-JrJfFU](https://image.ldbmcs.com/2020-09-02-JrJfFU.jpg)

```properties
# Initializers
org.springframework.context.ApplicationContextInitializer=\
org.springframework.boot.autoconfigure.SharedMetadataReaderFactoryContextInitializer,\
org.springframework.boot.autoconfigure.logging.AutoConfigurationReportLoggingInitializer

# 此处省略部分配置

# Auto Configure
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.boot.autoconfigure.admin.SpringApplicationAdminJmxAutoConfiguration,\
org.springframework.boot.autoconfigure.aop.AopAutoConfiguration,\
org.springframework.boot.autoconfigure.amqp.RabbitAutoConfiguration,\
org.springframework.boot.autoconfigure.batch.BatchAutoConfiguration,\

# 此处省略部分配置
```

柳暗花明又一村，我们最终得出 SpringBoot 自动化配置要干的事情就是在启动过程中将 spring.factories 中相关的自动化配置类进行解析。

接下来我们就来分析自动化配置类：

### 2. RedisAutoConfiguration

Redis 官方的 `RedisAutoConfiguration` 配置类：

```java
@Configuration
@ConditionalOnClass({JedisConnection.class, RedisOperations.class, Jedis.class})
@EnableConfigurationProperties({RedisProperties.class})
public class RedisAutoConfiguration {
  public RedisAutoConfiguration() {
  }

  @Configuration
  protected static class RedisConfiguration {
    protected RedisConfiguration() {
    }

    @Bean
    @ConditionalOnMissingBean(
      name = {"redisTemplate"}
    )
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) throws UnknownHostException {
      RedisTemplate<Object, Object> template = new RedisTemplate();
      template.setConnectionFactory(redisConnectionFactory);
      return template;
    }

    // 此处省略部分代码

  }
}
```

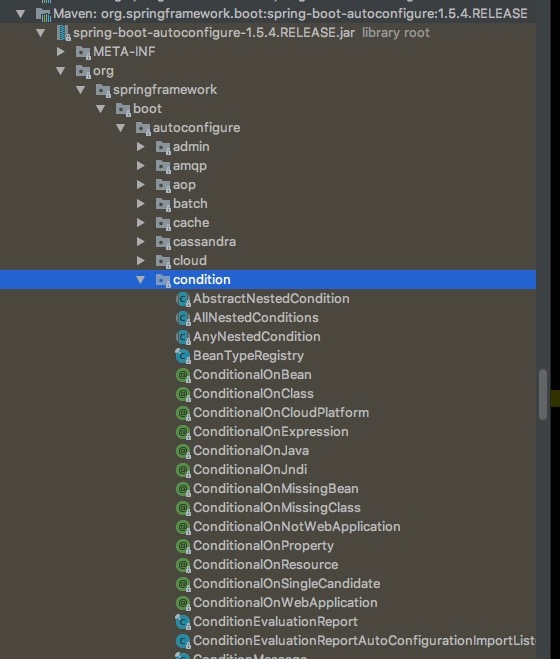

我们看到了 `@ConditionalOnClass` 和 `@ConditionalOnMissingBean` 这些注解，它们都是 SpringBoot的条件注解：

![2020-09-02-lnOG9x](https://image.ldbmcs.com/2020-09-02-lnOG9x.jpg)

想要知道这些注解有什么功能，这里就不展开讲了，可以去查阅 SpringBoot 官方文档。以下主要是分析这些注解是如何进行工作的。

#### 2.1 @ConditionalOnClass

```java
@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Conditional({OnClassCondition.class})
public @interface ConditionalOnClass {
  Class<?>[] value() default {};
  String[] name() default {};
}
```

可以看出，这些这些条件注解都组合了 @Conditional 元注解，只是使用了不同的条件，继续往下看 OnClassCondition 条件是如何工作的：

```java
@Order()
class OnClassCondition extends SpringBootCondition implements AutoConfigurationImportFilter, BeanFactoryAware, BeanClassLoaderAware {
  private BeanFactory beanFactory;
  private ClassLoader beanClassLoader;

  OnClassCondition() {
  }

  public boolean[] match(String[] autoConfigurationClasses, AutoConfigurationMetadata autoConfigurationMetadata) {
 	// 此处省略部分代码
  }
  // 此处省略部分代码
}
```

SpringBootCondition 实现了 Spring 的 Condition 接口，也就是并重写其 matche() 方法来构造判断条件。**Condition 可以用于判断 Configuration 配置类需要满足什么条件才可以装进 Spring 容器**。

当我们需要在 application.properties 中加入自定义的配置，那么 SpringBoot 是如何根据 application.properties 来实现自定义配置呢？我们往回看，发现了 `@EnableConfigurationProperties({RedisProperties.class})` 这个注解，这个注解就是用来读取 application.properties 中对应的配置信息对应到 POJO 类当中：

#### 2.2 RedisProperties.java

```java
@ConfigurationProperties(
    prefix = "spring.redis"
)
public class RedisProperties {
    private int database = 0;
    private String url;
    private String host = "localhost";
    private String password;
    private int port = 6379;
    private boolean ssl;
    private int timeout;
    private RedisProperties.Pool pool;
    private RedisProperties.Sentinel sentinel;
    private RedisProperties.Cluster cluster;
	// 此处省略getter和setter
}
```


---
